YOUCANIC UCAN-II full-system OBD2 scanner | Owner’s Review
Last Updated on April 11, 2026 by Juraj
The Youcanic UCAN-II OBD2 scanner seems to be perfect solutions for DIY mechanics who doesn’t want to spend thousands but also don’t want to sacrife functionality. This is one of cheapest scanners that will give you “everything” without annoying subscriptions.
Affiliate Disclosure: iamcarhacker.com is an Amazon and other affiliate programs Associate. As an Amazon Associate, I earn from qualifying purchases. Full Affiliate disclosure. // some of tested products I got sent for free but it never affects any scoring parameter. Full sponsor policy.
Youcanic full-system scanner overview
Youcanic UCAN-II full-system
The Youcanic UCAN-II full-system is full-system scanner from youcanic with bidirectional and coding aimed at DIY users wanting professional features.
- Full-system bidirectional
- ECU coding
- Wide vehicle coverage
- Lifetime updates
- Less known brand with smaller community
- Coding depth varies by vehicle
Service functions (30+)
Scores
Specs
| Tool type | Standalone device |
| User level | Advanced |
| Vehicle focus | All makes |
| Free updates | Lifetime |
| Subscription | Not required |
Video Review: @iamcarhacker tests youcanic full-system scanner
Written Review: @iamcarhacker tests youcanic full-system scanner
The YOUCANIC UCAN-II OBD2 scanner instantly caught my attention. Priced around $450, it’s currently the cheapest full-system scanner with a topology map, and it also supports ECU coding and comes with free lifetime updates. That combination is almost unheard of at this price.
It feels like a tool designed for professionals but priced for DIY mechanics. I tested it on a VW Touareg 2005 3.0 TDI — a vehicle that’s notoriously difficult to scan — and the results were genuinely impressive for a mid-range wireless scanner.
First Impressions and Setup
Out of the box, the YOUCANIC UCAN-II feels solid and well-built. It includes a wireless VCI, a user manual, and a sturdy tablet-style body. The built-in kickstand is a nice touch — simple but extremely useful when working in the garage.
Setup was mostly smooth. I had to restart both the scanner and my phone once because it didn’t want to connect to my hotspot during registration. After that, it activated without issues, connected to Wi-Fi, and downloaded updates automatically.
The UCAN-II supports a wide range of languages and even allows adding an optional videoscope (around €40), which expands its functionality further.
Diagnostics and Topology Map
The YOUCANIC UCAN-II scanner includes a smart VIN detection system that automatically identifies your car’s VIN and loads the correct configuration. On my VW Touareg 2005, it recognized the vehicle right away and launched the topology map — a color-coded view of all control modules.
Green = module OK, no faults
Red = module with stored faults
Blue = subsystem
Gray = no response or not installed
This feature alone gives you a full visual of your car’s electronics — something usually found in scanners costing $600 and up. The full system scan on the Touareg took about 7–8 minutes, which is normal considering how many ECUs that car has.
ECU Coding and Adaptations
One of the most surprising things about the YOUCANIC UCAN-II OBD2 scanner is its ability to perform real ECU coding and adaptations.
I tested it by changing the comfort blinker function from three flashes to five — it saved instantly and worked perfectly.
The scanner also includes a Documented Adaptation list that shows channel numbers for VAG cars (Volkswagen, Audi, Skoda, SEAT). That’s incredibly useful for coding and long adaptations without searching forums or manuals.
Service Functions
The UCAN-II includes around 40 different service resets, such as oil reset, EPB, DPF regeneration, SAS, throttle learning, injector coding, and more.
They’re all grouped under “Common Special Functions,” and the ones I tried worked correctly. For most DIY users, this scanner already covers every maintenance reset you’ll ever need.
Bidirectional Testing
Bidirectional control is where the YOUCANIC UCAN-II really feels like a professional tool.
I was able to:
- Activate the fuel pump relay
- Run the engine cooling fan
- Turn on low-beam lights and door locks
- Perform instrument cluster gauge sweeps
Each module includes its own active tests, and while some systems (like body control) have limited options, the important ones work reliably. Commands execute quickly and respond just like on higher-end scanners.
Live Data and Graphing

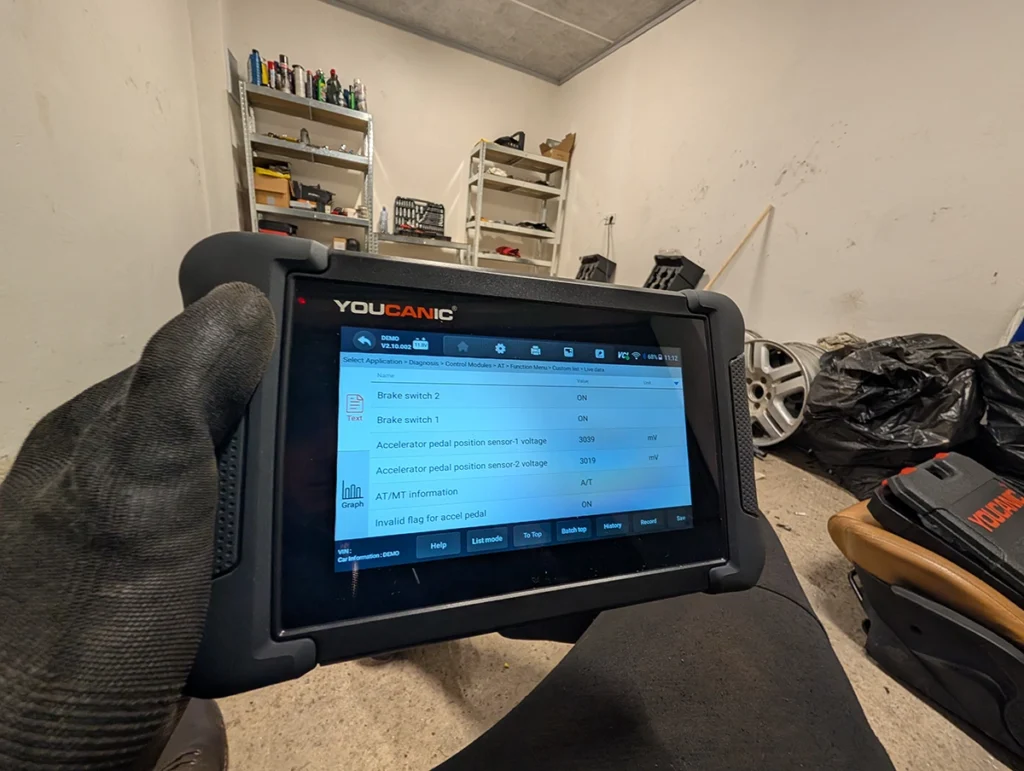

The live data interface is excellent for the price. You can switch between one- or two-column list views, create custom PID lists, and display up to four graphs at once.
There’s also a data recording and playback option, useful for diagnosing intermittent faults.
One small but very smart feature is the ability to pin key values to the top of the list for easy monitoring. I compared engine RPM with accelerator pedal position, and the readings updated smoothly with no lag.
The refresh rate and overall clarity are well above what I expected from a scanner in this price range.
Help Data and OEM Information
Inside the menu, the YOUCANIC UCAN-II includes a “Help Information” section packed with OEM-style guides and explanations for adaptations and reset procedures.
For example, it shows how to perform an EGR adaptation and lists VAG channel numbers for modules like the instrument cluster or comfort systems.
This kind of integrated information is something you’d normally only find in much more expensive software like VCDS or ODIS.
Additional Testing on Alfa Romeo Setup
To see how universal the scanner really is, I also tested it on a bench setup from an Alfa Romeo 147.
The UCAN-II connected instantly, scanned available ECUs, and even operated relays like the fuel pump, cooling fan, and AC compressor.
It also performed a successful odometer rewrite from 270,000 km to 300,000 km inside the cluster module confirming true ECU-level write access, not just read and clear.
Youcanic full-system scanner vs similiar tools
Full comparison
The Youcanic UCAN-II full-system is full-system scanner from youcanic with bidirectional and coding aimed at DIY users wanting professional features.
- Lifetime free updates included
The Mucar 892BT is my personal favourite go-to scanner for diagnosing, checking used cars. service resets or even coding new features. Unless I need special tool I am using this one..
- Lifetime free updates included
- Above average ease of use (10/10)
- Above average UX quality (10/10)
- Above average service functions (9/10)
The XTool D8s is pro-level mid-range tablet with full-system diagnostics, bidirectional tests and moderate coding depth tested on VAG platform.
- Above average service functions (8/10)
The Thinkscan 689 BT is wireless version of the thinkscan 689 with solid full-system diagnostics and bidirectional support.
- Lifetime free updates included
- Above average vehicle coverage (9/10)
- Above average speed (9/10)
- Above average UX quality (9/10)
Feature comparison
|
Best Budget
Youcanic UCAN-II full-system
|
Best Features
Mucar 892BT
|
Best Value
XTool D8s
|
Best for Beginners
Thinkscan 689 BT
|
|
|---|---|---|---|---|
| Overall score | 8.4
|
9
|
8.3
|
8.6
|
| Tool type | Standalone device | Standalone device | Standalone device | Standalone device |
| User level | Advanced | Professional | Advanced | Advanced |
| Vehicle focus | All makes | All makes | All makes | All makes |
| System focus | All systems | All systems | All systems | All systems |
| Global OBD | ✓ | ✓ | ✓ | ✓ |
| Full system codes | ✓ | ✓ | ✓ | ✓ |
| Live data (full) | ✓ | ✓ | ✓ | ✓ |
| Bidirectional | ✓ | ✓ | ✓ | ✓ |
| Coding | ✓ | ✓ | ✓ | ✓ |
| ECU programming | ✗ | ~ | ✗ | ✗ |
| Diagnostics | 8/10 | 8/10 | 8/10 | 8/10 |
| Service score | 7/10 | 9/10 | 8/10 | 7/10 |
| Coding score | 8/10 | 9/10 | 7/10 | 8/10 |
| Ease of use | 8/10 | 10/10 | 7/10 | 8/10 |
| Price / value | 9/10 | 10/10 | 9/10 | 9/10 |
| Free updates | Lifetime free updates | Lifetime free updates | 3 years free updates | Lifetime free updates |
| Subscription | Not required | Not required | Not required | Not required |
| Verdict | full-system scanner from youcanic with bidirectional and coding aimed at DIY users wanting professional features | My personal favourite go-to scanner for diagnosing, checking used cars. service resets or even coding new features. Unless I need special tool I am using this one. | pro-level mid-range tablet with full-system diagnostics, bidirectional tests and moderate coding depth tested on VAG platform | wireless version of the thinkscan 689 with solid full-system diagnostics and bidirectional support |
| Official store | Check price › | Check price › | Check price › | Check price › |
| Amazon | — | Check price › | Check price › | Check price › |
| AliExpress | — | Check price › | Check price › | Check price › |
| Full review → | Full review → | Full review → | Full review → |
Final Thoughts
The YOUCANIC UCAN-II OBD2 Scanner delivers incredible value for money. You’re getting a full-system scan, topology map, ECU coding, live data, and lifetime updates — all in a wireless package around $450.
It’s not perfect — setup can be a little finicky and some active tests are limited — but once connected, it performs like a scanner twice its price.
If you’re looking for your first serious all-system scanner that can handle both older European vehicles and modern cars, the YOUCANIC UCAN-II is one of the best choices right now.
Check current price and availability here
