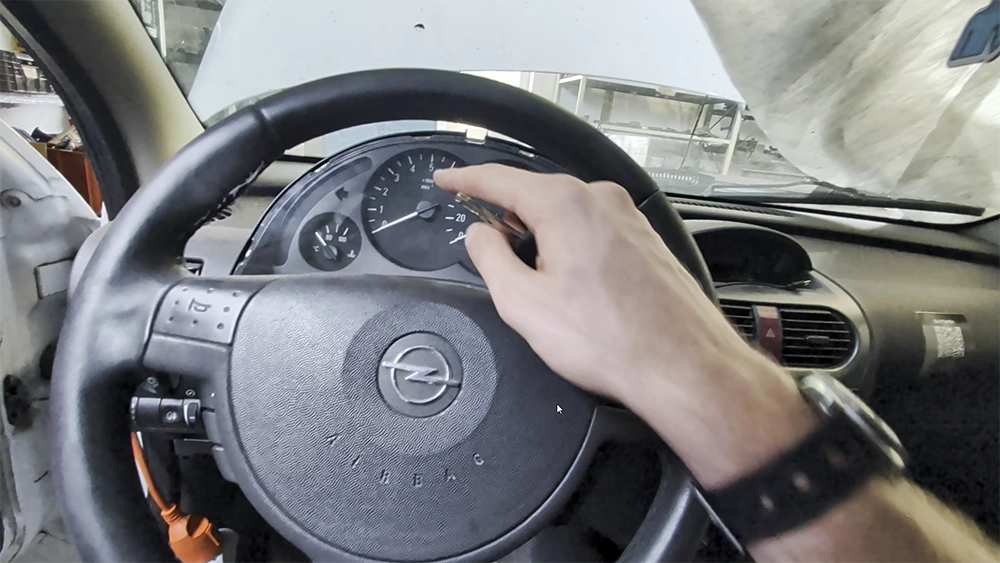

By Juraj · Last updated August 15, 2026This guide shows how to swap in a used instrument cluster from a different Corsa C and program it to run on your car.
I earn from qualifying purchases and sometimes get tools for free (full disclosure). It never affects my scoring.
Used tool in this guide
Video: How to swap and program an instrument cluster on a Corsa C
This video shows how to reset a donor cluster from its old car's security code and program it to a new car using Opcom.
Supported vehicles
| Vehicle |
|---|
| corsa-c |
Technical overview
| Vehicle | Opel Corsa C |
|---|---|
| Year | 2006 |
| System | Instrument cluster (IPC), KW82 protocol |
| Procedure type | Cluster reset and re-programming (donor cluster swap) |
| Difficulty | Easy |
| Time required | ~30 min (can run longer if the first programming attempt fails) |
| Prerequisites | Opcom / VAUX-COM interface, security code of the donor cluster, security code of your own car |
Step-by-step procedure
Read the security code from the donor cluster (still in its original car, or on bench power)
Before you touch the new cluster, you need two numbers. The security code of the car the cluster came from, and the security code of your own car. Without both, you can't move a cluster between cars.
Autel path: Opel > Automatic selection > Pre-Scan > Instrument > Special function > Get security code.
Opcom path: 2006> Corsa-C > Body > Instrument cluster > EEprom menu > Read security code
For this cluster the code came back as 2227.
Connect the cluster to your car and open the instrument cluster module
Opcom identifies it as VAUX-COM Corsa-C/Meriva/Tigra-B IPC Programming, running at 009600 bps, KW82 protocol, pin #12. It read back the cluster's own data: Part Number 13173347, Alpha Code WA, Production Date 0904.
Reset the cluster using the donor car's security code
This puts the cluster into a virgin state so it can accept a new password. In the "Enter Security Code" dialog, enter the donor code, 2227 in this case, not your own car's code.
Opcom confirmed: "Reset Completed Successfully."
Program the cluster with your own car's security code
Same "Enter Security Code" dialog, this time enter your own car's code, 5798.
Verify
Cluster powers up normally with your car's own security code active. No warning lights related to the IPC module, odometer and gauges read correctly.
