BMW E61 530d 2009 ZF Automatic: Reset Transmission Adaptations to Fix the 2-to-3 Shift Kick
This guide shows how to read and reset the clutch adaptation values on a ZF automatic transmission to cure a harsh upshift, using the example of a 2-to-3 gear kick that appeared after the box warmed up.
I earn from qualifying purchases and sometimes get tools for free (full disclosure). It never affects my scoring.
Used tool in this guide
or
I did this one on ISTA, the BMW dealer software. Any tool that reaches the transmission special functions and offers “Display and reset adaptation values” will do the same job. The screenshots here are from a Kingbolen tablet running the BMW pack, which shows the exact same values and the same reset routine.
Video: How to reset transmission adaptations on a BMW ZF box
This video shows the full job, reading the adaptation values, spotting the bad ones, doing the reset, and the test drive after.
Supported vehicles
| Vehicle |
|---|
| 5-series-e6x |
Technical overview
| Item | Details |
|---|---|
| Vehicle | BMW 530d (E61) |
| Year | 2009 |
| System | ZF 6-speed automatic transmission |
| Procedure type | Read and reset clutch adaptation values |
| Difficulty | Easy |
| Time required | ~10 minutes plus a test drive |
| Prerequisites | Engine and transmission at operating temperature, battery support, scanner that reaches transmission special functions |
Step-by-step procedure
The car was upshifting fine cold. Once the box warmed up, 2 to 3 would land with a clear kick, worse in Sport mode. That pattern points at adaptation, not a mechanical fault, so the box gets a chance before anything bigger.
What you are looking at
The ZF box has five clutch packs, A through E, and each gear engages a combination of them. The module stores two learned values per clutch. Fill pressure is the extra pressure it adds on engagement to correct for wear and friction.
Rapid fill time is how long it pre-fills the clutch with oil before the pressure ramps, so there is no slop before it grabs. Two independent sets, five values each. As clutches wear and oil ages they drift, and when one goes extreme the module is fighting to keep the shift smooth. You feel that fight as the kick.
Step 1: Read the values first

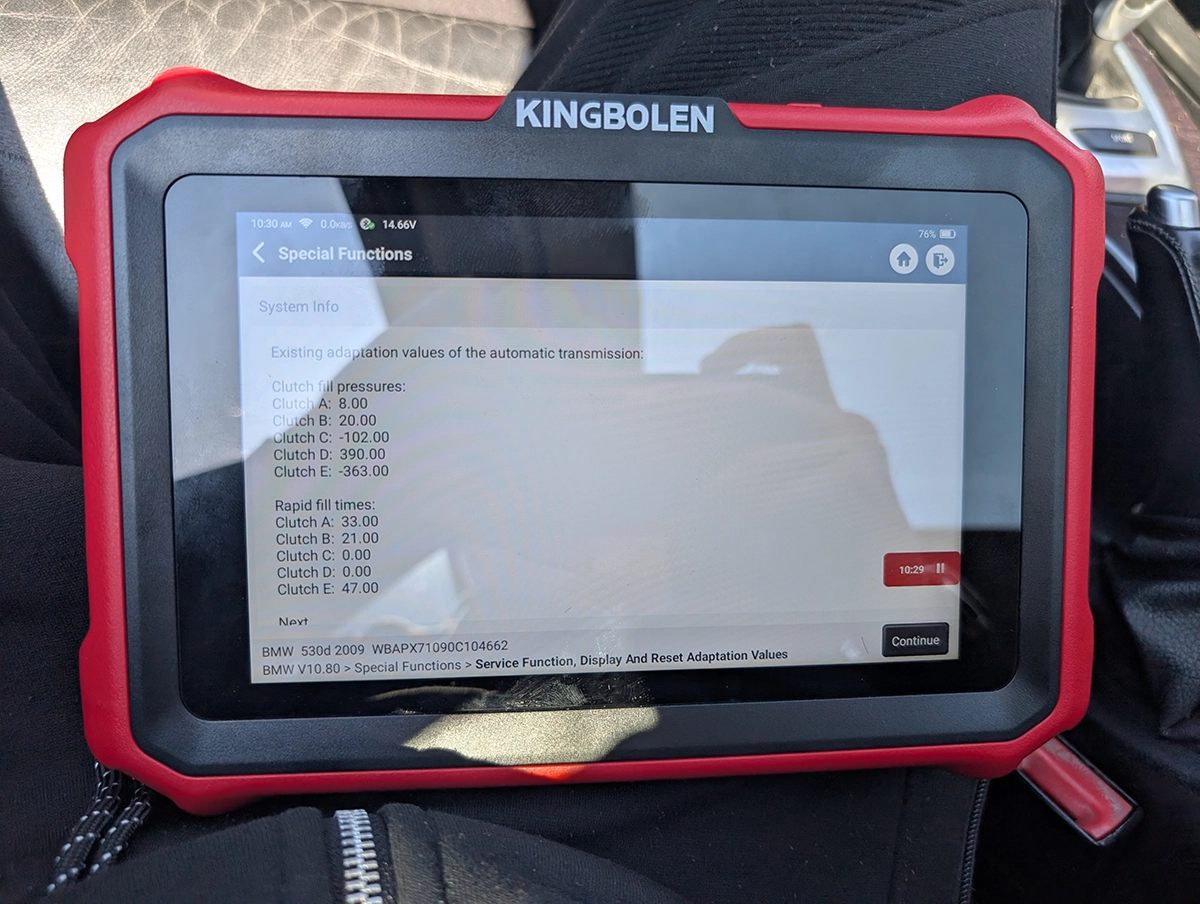

Transmission control unit, transmission clutch adaptations menu. Two options: read values, reset values. Read first. On this car:
- Fill pressures: A 8.00, B 20.00, C -102.00, D 390.00, E -363.00
- Rapid fill times: A 33.00, B 21.00, C 0.00, D 0.00, E 47.00
Clutch C, D and E fill pressures sat a long way from A and B, the module compensating hard on the higher clutches. That lines up with the shift that was misbehaving.
I changed the transmission oil first, on the theory that tired fluid was behind the drift. Kick was still there afterwards. Worth doing for the box, but the oil alone did not fix the shift.
Step 2: Reset
Select reset adaptation values. The tool warns it resets in the next step, confirm, and you get “saved successfully.” No coding, no flashing. The module is back to zero and relearns as you drive.
Don’t reset as a first move on a box that kicks cold or slips under load. The forced relearn can make a genuinely worn box feel worse. This is a warm-only, adaptation-pattern fault. Diagnose before you reset.
Step 3: Test drive
Drive normally so the module rebuilds its adaptations. I tested in Sport on purpose, that is where the kick was worst. Half an hour, no kicks. Did not expect the reset alone to do it after the oil change had not, but the shift came back clean.
A warm-only shift kick that worsens in Sport is often adaptation drift, not mechanical failure. Read the values, look for clutches sitting far from the rest, reset, and let the box relearn before reaching for anything more expensive.
A reset is not a permanent fix if the cause is real wear. If the clutches are genuinely worn the values drift back out and the kick returns. For now, after the oil and the reset, it shifts clean.
Additional Information & Compatibility Notes
Before using or purchasing any diagnostic tool for this procedure, always verify compatibility with your exact vehicle model, year and system configuration. Supported functions may vary depending on software version, hardware revision and regional limitations. Transmission adaptation menus and the exact labelling of clutch values differ between ZF generations and between BMW software versions.
