VDiagtool VD30 Pro Tested: 4 Live-Data Graphs at Once, Battery Test Iamcarhacker

Published: July 25, 2024 · Last updated: June 4, 2026

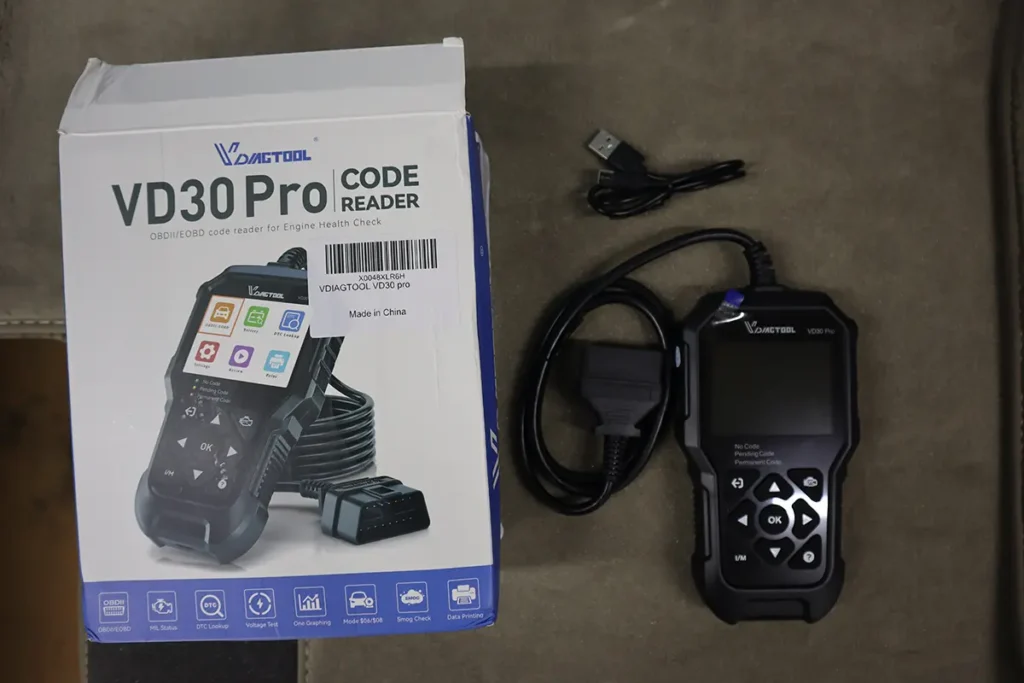

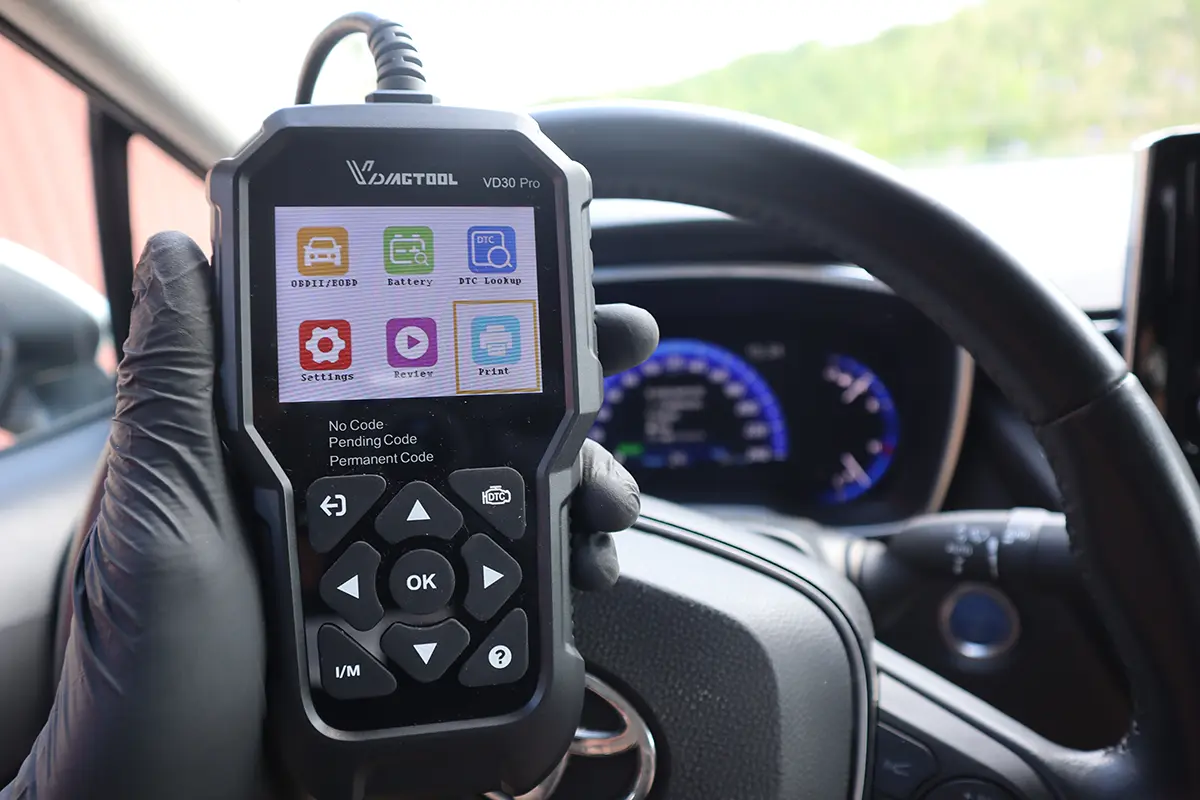

The VDiagtool VD30 Pro is a standalone engine code reader, and one of the best I’ve tested. It reads and clears codes and shows live data like any reader, but a few things set it apart: it’s the first code reader I’ve used that displays four live-data graphs at once, separates code types into tabs, and includes a battery test. For a no-app handheld that just does engine work, it’s about as good as code readers get. It’s engine-only. Read on for what makes it stand out and its one small bug.

I earn from qualifying purchases and sometimes get tools for free (full disclosure). It never affects my scoring.

Vdiagtool VD30 overview

Personally tested by Juraj – what he likes

Best value for money code reader

✓ Global OBD✗ Full system codes✗ Full system live data✗ Bidirectional✗ Coding✗ ECU programming

Scores

Diagnostics

4/10

Vehicle coverage

8/10

Ease of use

9/10

UX quality

9/10

Speed

9/10

Price / value

6/10

Build quality

8/10

✅These scores come from testing on real cars, solving real problems. How I test OBD2 scanners →

Specs

Tool type	Standalone device
User level	Beginner friendly
Vehicle focus	All makes
System focus	engine
Free updates	Lifetime
Subscription	Not required

Support & resources

Need help with tool?

Open tool support page ↗

Vdiagtool VD30 PRO6.9/10Check Price →

What it’s actually good at

The 4-in-1 live data is the standout, and no other reader I’ve tested matched it. Most code readers show live data, but not all show every parameter, and few graph it at all. The VD30 does both, and it’s the first I’ve tested to display four different values as graphs at once, the closest was the Ancel AD530 at three. For watching related parameters together (say fuel trims against oxygen sensor) on a standalone reader, that’s genuinely useful.

It separates code types cleanly, which not all readers do. Permanent, current and pending codes get their own tabs, so you immediately know what kind of fault you’re dealing with, current ones matter most, pending and historical give context. On the test car it pulled the engine codes correctly (oxygen sensor, vehicle speed, camshaft), showed freeze frame for the stored code, and cleared the check engine light without fuss.

It’s also fast, easy to use and well built, with a battery voltage test (not every reader has one), freeze frame, readiness monitors for emissions pre-checks, and Mode 6 onboard monitoring data. It does the full set of engine OBD jobs and does them well.

Where it falls short

One small bug: the code library is missing some letters. Look up a code in the built-in library and it might show ” jector fault” instead of “fuel injector fault.” It’s only the library lookup function, though, when you actually scan codes from the car, the description comes through complete. Cosmetic, but worth knowing.

And the genre limit applies: four graphs on a small screen gets cramped. Reading four live-data parameters at once is a bit confusing on a handheld’s little display, but that’s a code-reader problem in general, they just don’t come with screens big enough for multiple graphs. It’s also engine-only: no full-system, no ABS or airbag, no bidirectional, no coding.

Who should buy this

Yes, buy it if:

You want one of the best standalone engine code readers, with no app or phone needed
You value graphing multiple live-data parameters at once and a built-in battery test
You like codes sorted into permanent/current/pending tabs for clearer diagnosis

No, look elsewhere if:

You want more than engine codes, a 4-system or full-system tool reaches ABS, airbag and more
You’d rather view live data on a big phone screen, an ELM adapter plus app does that
You need bidirectional or coding, this is a pure code reader

How it compares?

Vdiagtool VD30 PRO

Ancel AD530

→ Ancel AD530, the closest rival among code readers, but it tops out at three live-data graphs where the VD30 does four. If you want the most live-data capability in a standalone reader, the VD30 edges it. The comparison shows the difference.

Full comparison →

Vdiagtool VD30 PRO

Ancel AD310

→ Ancel AD310, the classic best-selling reader, simpler and cheaper. If you just want reliable code reading and don't need graphs or a battery test, it's the no-frills option; the VD30 is the step up.

Full comparison →

Vdiagtool VD30 PRO

Ancel AD410 PRO

→ Ancel AD410 PRO, a reader that also tests your battery and alternator. If you want a built-in battery and charging test alongside code reading, weigh it against the VD30.

Full comparison →

Final word

The VDiagtool VD30 Pro is one of the best engine code readers I’ve tested: it shows up to four live-data graphs at once, separates permanent, current and pending codes into tabs, includes a battery test, and runs fast and clean. The only real niggle is a cosmetic bug in the code library (missing letters), which doesn’t affect codes scanned from the car, and the usual small-screen limit on multiple graphs. It’s engine-only, but if a standalone, no-app code reader is what you want, this is about as capable as they come.

Vdiagtool VD30 PRO

best value budget code reader with reliable performance

Official website ›Check on Amazon ›AliExpress ›

Read full review →
