Budget key programmer Mucar 581 | Owner’s review
Published: May 24, 2026 · Last updated: June 5, 2026
The Mucar 581 is the tool that got me into key programming. It’s a $400–600 specialised key programmer that excels at two things — reading what’s inside an existing key, and cloning fixed-code chips. It’s not a do-everything OBD scanner and it’s not strong at adding new crypto keys to a car’s immobiliser. If you understand that going in, it’s an excellent first key programming tool. If you expected a budget Autel IM608, you’ll be disappointed.
I earn from qualifying purchases and sometimes get tools for free (full disclosure). It never affects my scoring.
Mucar 581
The Mucar 581 is a specialized key programming tool proven mostly for cloning existing keys, not for the programming from scratch..
- Good entry tool for key programming
- User-friendly interface
- Supports a wide range of vehicles
- Limited to key programming functions
- Not best for actually adding new keys to car (better for cloning)

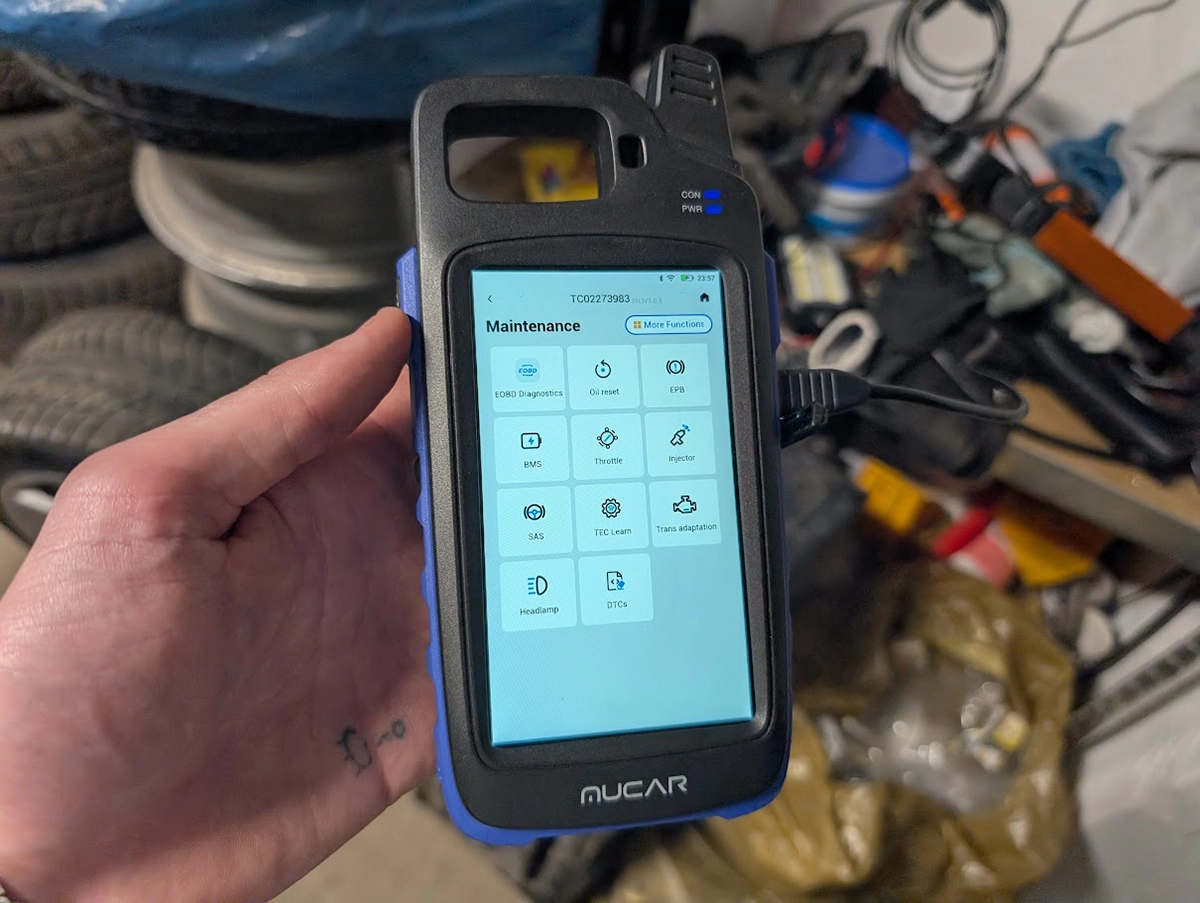

Service functions (9+)
Scores
Specs
| Tool type | Standalone device |
| User level | Professional |
| Vehicle focus | All makes |
| System focus | key |
| Free updates | Lifetime |
| Subscription | Not required |
Photos
Support & resources
| Need help with tool? | Open tool support page ↗ |
| Will this work for my car? | Open coverage check page ↗ |
| Hardware specs |
|
| Supported languages |                  |
Addons & accessories
Real-world procedures tested with this tool
What it’s actually good at
I use the Mucar 581 mostly for two specific jobs before I ever plug an OBD scanner into a car.

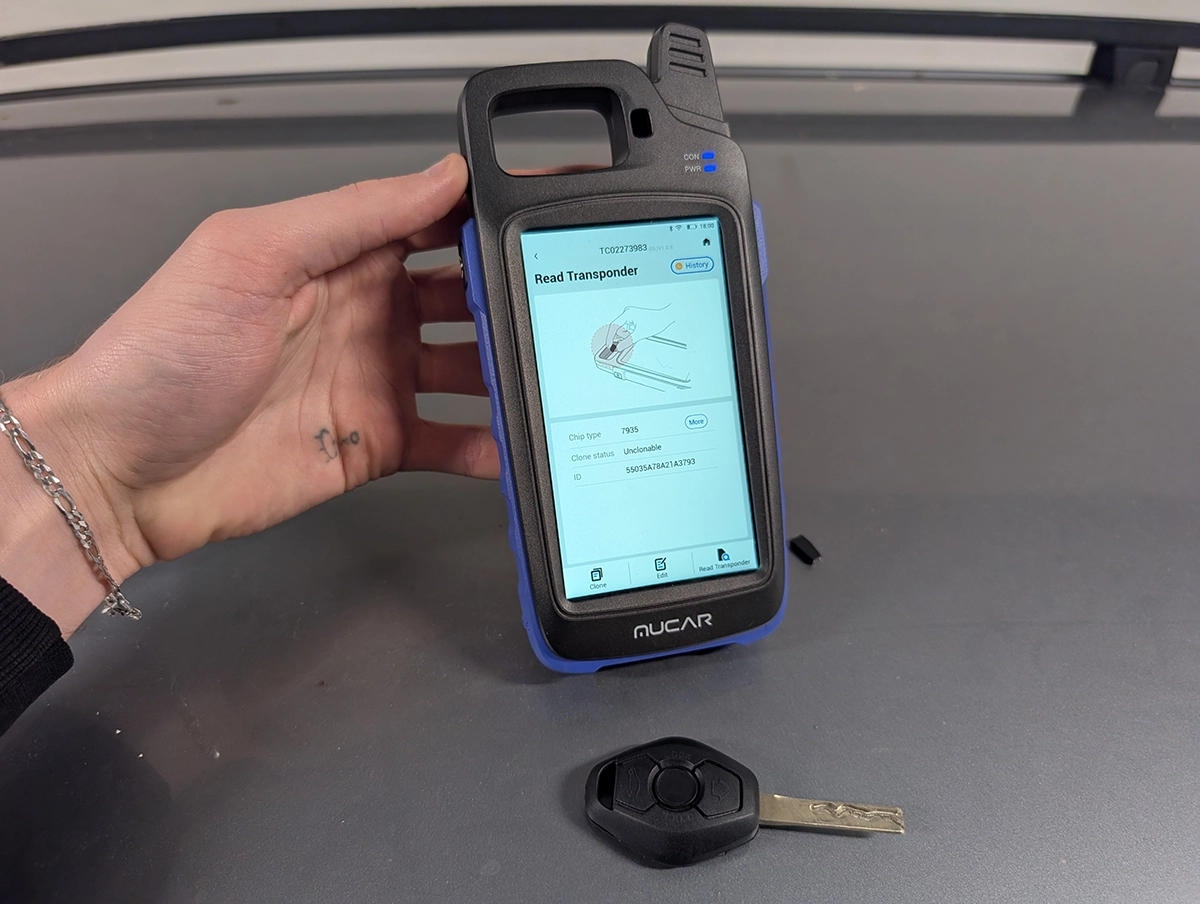

Reading the original key. Drop the existing key on the coil, the screen tells you the chip type and IC number — for example “chip 46, PCF7936.” That’s exactly what you paste into the AliExpress search to order the right replacement. Five seconds of work that saves a $30 reorder.

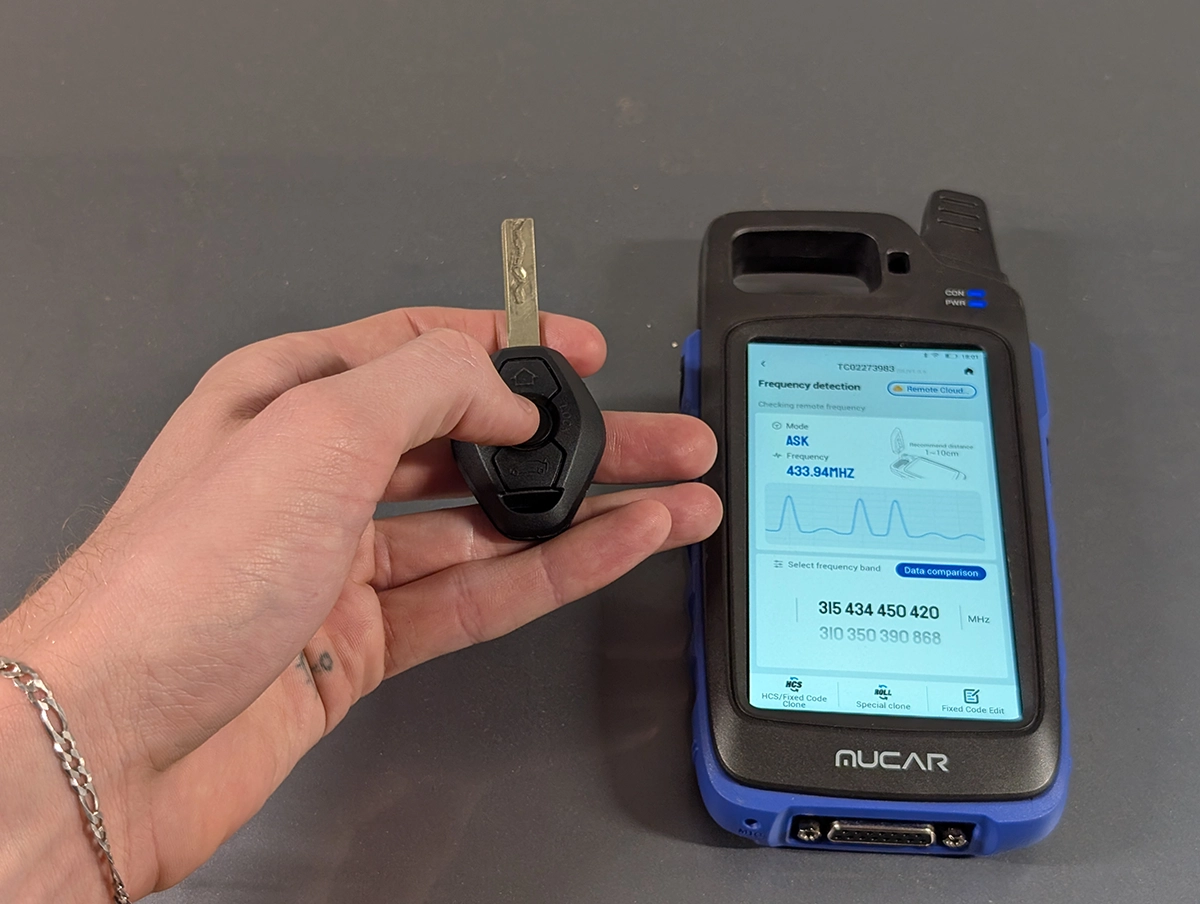

Reading the original remote. Press a button on the existing remote at the tester and it tells you both the carrier frequency (433 / 315 / 868 MHz) and the modulation (ASK or FSK). This single feature has saved me from PSA modulation traps on at least two jobs since I got it.
For these two tasks alone, the 581 has paid for itself. The fact that it can also do simple key cloning on older fixed-code chips and act as a basic OBD2 scanner is a bonus.
Where it falls short
Cloning crypto chips is where the cheap key programmer reality kicks in. The 581 will sometimes report “OK” on a cloning operation that actually produced a useless key. I’ve seen this on a Renault Mégane II key card — tool says success, the car silently rejects the clone. The 581 wrote the chip’s static UID correctly, but the car expected a cryptographic rolling-code handshake that a clone can’t satisfy. This isn’t a tool bug, it’s a fundamental limit of cloning on Megamos AES, DST80, Hitag-Pro, and crypto cards.
For adding new keys to a car’s immobiliser (vs cloning), the 581 has narrower coverage than mid-tier tools like the Xtool D8S + KC100 or the Autel IM608. It works on some Tier-1 jobs but you’ll quickly run into “vehicle not supported” on anything beyond simple older European and Asian cars.
It’s also not a replacement for a real diagnostic scanner. The general OBD2 functions are basic — fault codes and a handful of service resets. If you don’t already own a proper scanner, the 581 won’t fill that gap.
Who should buy this
Yes, buy it if:
- You’re a DIYer who wants to learn key programming on your own car and you already own a separate OBD2 scanner for general diagnostics
- You already have a mid-tier or pro scanner (Autel, Launch, Xtool tablet) and want to add a dedicated key tool with frequency + chip detection that those tablets often lack
- You do enough key work that the frequency/chip tester pays for itself by preventing wrong-key orders
No, look elsewhere if:
- You want one tool that does both general diagnostics and key programming — get the Xtool D8S + KC100 combo instead
- You’re doing this as a paid side income and need broad coverage including modern crypto cars — save up for the Autel IM608
What I’d consider instead
Mucar 581
Autel IM608 PRO 2
Mucar 581
XTool D8s
Check more Key programming tools
Still deciding between tools rather than which 581 deal to grab? I put the whole key-programming lineup side by side, budget adapters up to pro IMMO tablets, in my best OBD2 scanners for key programming roundup. The short version: the 581 is the specialist key-prep tool, but if you want one box that also does general diagnostics, the comparison shows where to spend instead.
Final word
For $400–600 the Mucar 581 isn’t a one-tool-does-everything purchase, and Mucar doesn’t pretend it is. It’s a specialised key programmer with two killer features (chip + frequency detection) that justify it even before you do your first cloning job. As a first step into key programming, I’d buy it again.
Mucar 581 vs Autel IM608 vs Xtool D8S + KC100, which should I get?
Different jobs. The 581 is a cheap, specialised key-prep tool, great as a first step or as a chip and frequency tester alongside a tablet. The Xtool D8S + KC100 is the one if you want general diagnostics and key programming in one workshop tool. The Autel IM608 is for taking key work seriously as a paid service: broadest coverage, several times the price.
Do I still need a separate OBD2 scanner if I buy the 581?
Yes. The general OBD2 functions are basic, fault codes and a handful of resets. If you don't already own a proper diagnostic scanner, the 581 won't fill that gap. Think of it as a dedicated key tool that sits alongside your scanner, not instead of it.
Which chips can it clone, and which will fail?
Fixed-code chips clone fine. Crypto chips don't: Megamos AES, DST80, Hitag-Pro and Renault crypto cards either fail or, worse, report "OK" and hand you a dead key. That's not a tool bug, it's a fundamental limit of cloning crypto. The car expects a rolling-code handshake that a static clone can't satisfy.
Can the Mucar 581 add a new key or only clone existing ones?
Both, but adding is its weaker side. Cloning fixed-code chips is what it's built for. Adding a key to the immobiliser works on simpler older European and Asian cars, but you'll quickly hit "vehicle not supported" beyond that. For broad add-key coverage you want a mid-tier tool like the Xtool D8S + KC100 or an Autel IM608.
What can the Mucar 581 actually do?
It's a specialised key programmer, not a do-everything OBD scanner. Its two best jobs are reading what's inside an existing key (chip type and IC number) and reading a remote's carrier frequency and modulation. It also clones fixed-code chips and does basic OBD2 fault codes. What it isn't: a strong tool for adding new crypto keys to an immobiliser, and not a replacement for a proper diagnostic scanner.
