How to Check Diesel Fuel Injectors (VW / Audi / Skoda / Seat) Using OBD2 Scanner

This guide shows how to check diesel fuel injectors on VAG cars and how to interpret results.

Affiliate Disclosure: iamcarhacker.com is an Amazon and other affiliate programs Associate. As an Amazon Associate, I earn from qualifying purchases. Full Affiliate disclosure.

Used tool in this guide

Supported vehicles

Vehicle
most vag models

Technical overview

Item	Details
Vehicle	VW / Audi / Skoda / Seat (diesel engines)
Year
System	Engine (01)
Procedure type	Diagnostics (Live Data)
Difficulty	Easy
Time required	~5–10 minutes
Prerequisites	Engine must be fully warmed up (80–90°C)

Step-by-step procedure

1. Connect to Engine ECU

01 Engine → Live Data / Measuring Blocks

---

2. Select injector-related parameters

👉 Depending on your scanner:

✔ Modern scanners:

• Injection Quantity Deviation Cyl. 1–4

✔ Older / cheaper scanners:

👉 You must enter channel numbers manually

---

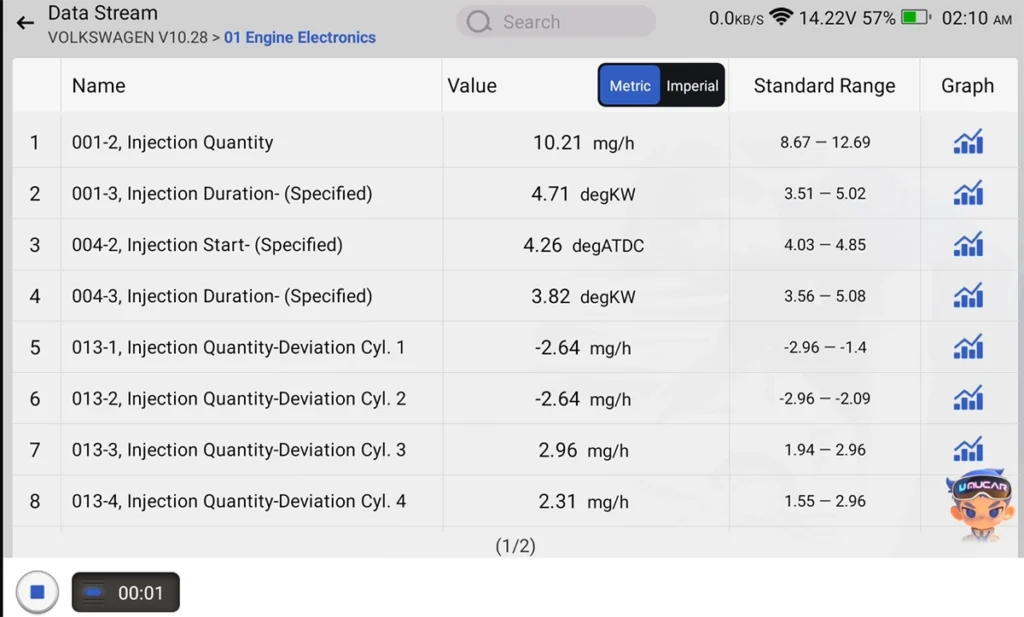

VAG Measuring Blocks (IMPORTANT)

Function	Channel
Injection Quantity	001-2
Injection Duration	001-3
Injection Start	004-2
Injection Duration (alt)	004-3
Injector Deviation Cyl 1	013-1
Injector Deviation Cyl 2	013-2
Injector Deviation Cyl 3	013-3
Injector Deviation Cyl 4	013-4

3. Observe values at idle

👉 Focus on:

• Injector deviation values (013 group)

4. Increase RPM (~2000 rpm)

👉 Compare behavior:

• Do values stabilize?
• Do they go close to 0.00?

Live Data Interpretation

Parameter	Normal Range	What It Means	Diagnostic Insight
Injection Quantity	~5–10 mg/str (idle)	Base fuel amount	High → air leak / fueling issue
Injection Duration	Stable	ECU control of injection	Fluctuating → unstable combustion
Injector Deviation	-2.0 to +2.0 mg/str	Cylinder balance	Normal operation
Injector Deviation	±2.5 to ±3.0	ECU compensation	Possible issue
Injector Deviation	> ±3.0	Limit reached	Fault (injector or engine)
All cylinders ~0 (under load)	Ideal	Balanced engine	Good condition

Diagnostic Logic (MOST IMPORTANT PART)

Case 1:

High deviation at idle + normal under load

👉 Interpretation:

• ECU compensating imbalance
• Injectors NOT necessarily faulty

Case 2:

High deviation at idle AND under load

👉 Interpretation:

• Likely faulty injector
• Mechanical issue

Case 3:

One cylinder extreme value (+3 / -3)

👉 Interpretation:

• Bad injector
• Compression issue on that cylinder

Real-World Example (Common Scenario)

👉 Symptoms:

• Rough idle
• No power loss
• Injector deviations high at idle
• All values = 0.00 under load

✔ Conclusion:

Not typical injector failure

👉 More likely:

• compression imbalance
• EGR influence
• air/fueling correction

Recommended Next Steps

1. Relative Compression Test

👉 Confirms mechanical condition

2. Check EGR system

• stuck open
• excessive recirculation

3. Check intake / MAF

• incorrect air measurement

Common Mistakes

❌ Replacing injectors based only on idle data
❌ Ignoring load behavior
❌ Testing cold engine
❌ Not comparing all cylinders

Pro Tip

If injectors are bad → problem appears at ALL loads

If problem only at idle → ECU is compensating something else

Summary

This procedure allows you to quickly:

• evaluate injector performance
• detect imbalance between cylinders
• avoid unnecessary injector replacement

Video: How to check fuel injectors on Volkswagen (works for all vag cars)

This video shows how to
