Orange 5 (clone) review: a $150 clone that still earns a spot on the bench for older cars

Published: August 9, 2026 · Last updated: October 29, 2026

The Orange 5 clone is my go-to when a job needs bench work instead of an OBD cable. It's an EEPROM and MCU programmer built for reading locked microcontrollers, the kind of chip diagnostic scanners never touch. At $150 it's not trying to be a do-everything tool, and it's not for late-model cars with modern security. But on older immobox and dashboard work, it's held up well enough that I keep it in the toolbox next to my scanners.

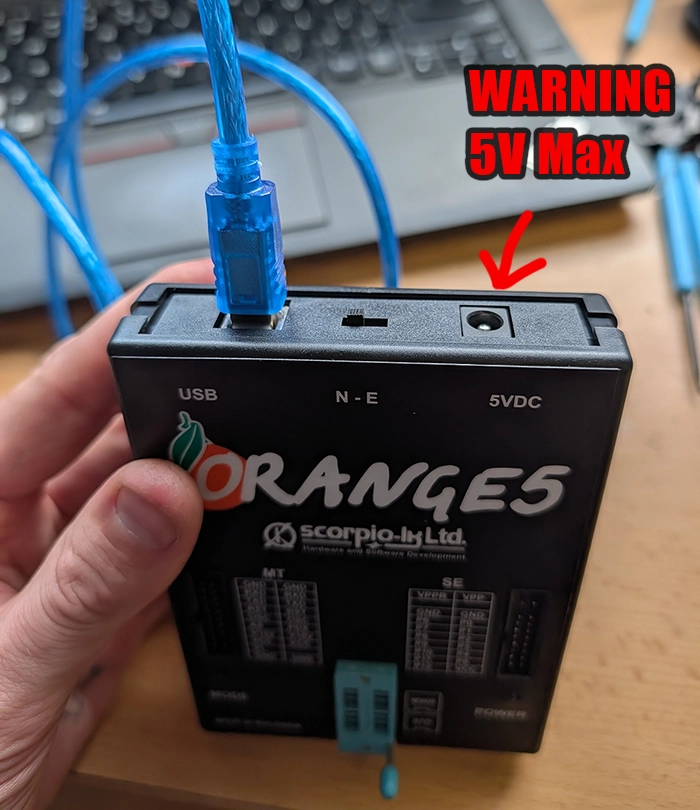

⚠️ I fed it 12V into a 5V port. The Orange 5 has a separate 5VDC power input right next to the USB port, clearly marked with a warning sticker for 5V max.
orange 5 clone 6

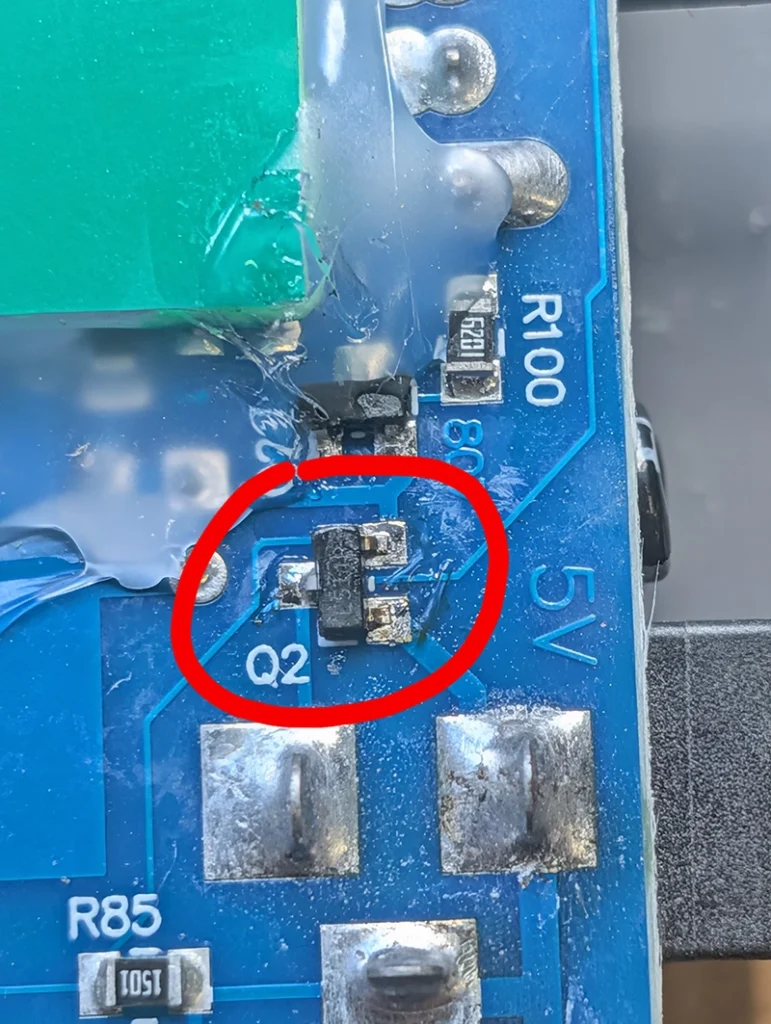

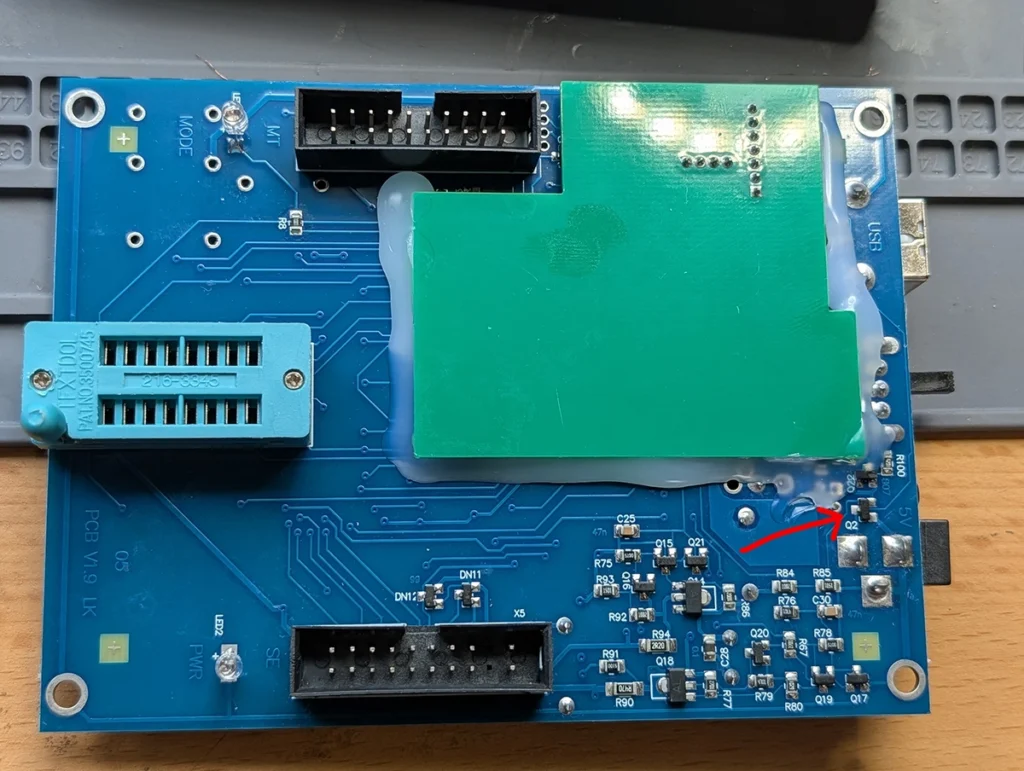

I plugged in the wrong adapter and the tool went completely dead, no power at all. Opening the case, we traced it to a small SMD component marked Q2 sitting right next to the 5V line on the board.

orange 5 clone 1

Desoldered it, and the tool powered back up and worked fine from there. I couldn't tell you the exact part, but whatever it was, it took the hit so the rest of the board didn't have to.

orange 5 clone 2

I earn from qualifying purchases and sometimes get tools for free (full disclosure). It never affects my scoring.

Orange5 clone
Overall score
8.6
Orange5

Orange5 clone

The Orange5 clone is chip programmer, not an airbag tool: strong on Renesas H8SX, NEC V850 and Fujitsu MCUs that CarProg cannot touch, so it complements a CarProg clone on the bench. Crash data is cleared by editing the dump..

Juraj
Things to consider
  • No airbag list
  • You need to know the chip | Every job is chip level | Clone software
  • No updates

Good to know before you buy

  • Combine with a CarProg clone: CarProg for Motorola, Orange5 for Renesas and NEC
✗ Global OBD✗ Full system codes✗ Full system live data✗ Bidirectional✗ Coding~ ECU programming

Service functions (1+)

EEPROM and MCU read-write by direct connection (airbag crash data via dump edit)

Scores

Service functions
6/10
Coding
6/10
Programming
10/10
Vehicle coverage
8/10
Ease of use
6/10
UX quality
6/10
Speed
8/10
Price / value
10/10
Build quality
8/10
✅These scores come from testing on real cars, solving real problems. How I test OBD2 scanners →

Specs

Tool typeStandalone device
User levelProfessional
Vehicle focusAll makes
System focusEEPROM and MCU chips
Free updatesnone (clone)
SubscriptionNot required
App & platformsOrange5 · Windows
Security gatewayNo gateway unlock
Third-party appsOnly the official app

Support & resources

Hardware specs
  • USB programmer
  • adapter boards
Supported languages
English
Orange5 clone8.6/10Check Price →

Reading worked well

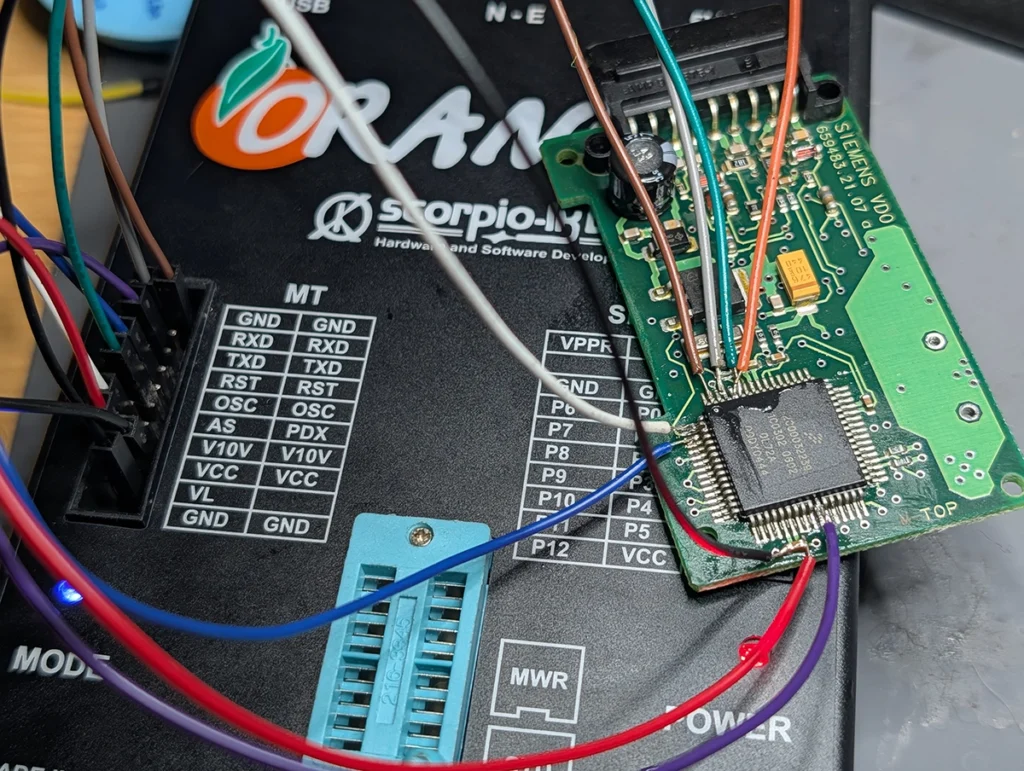

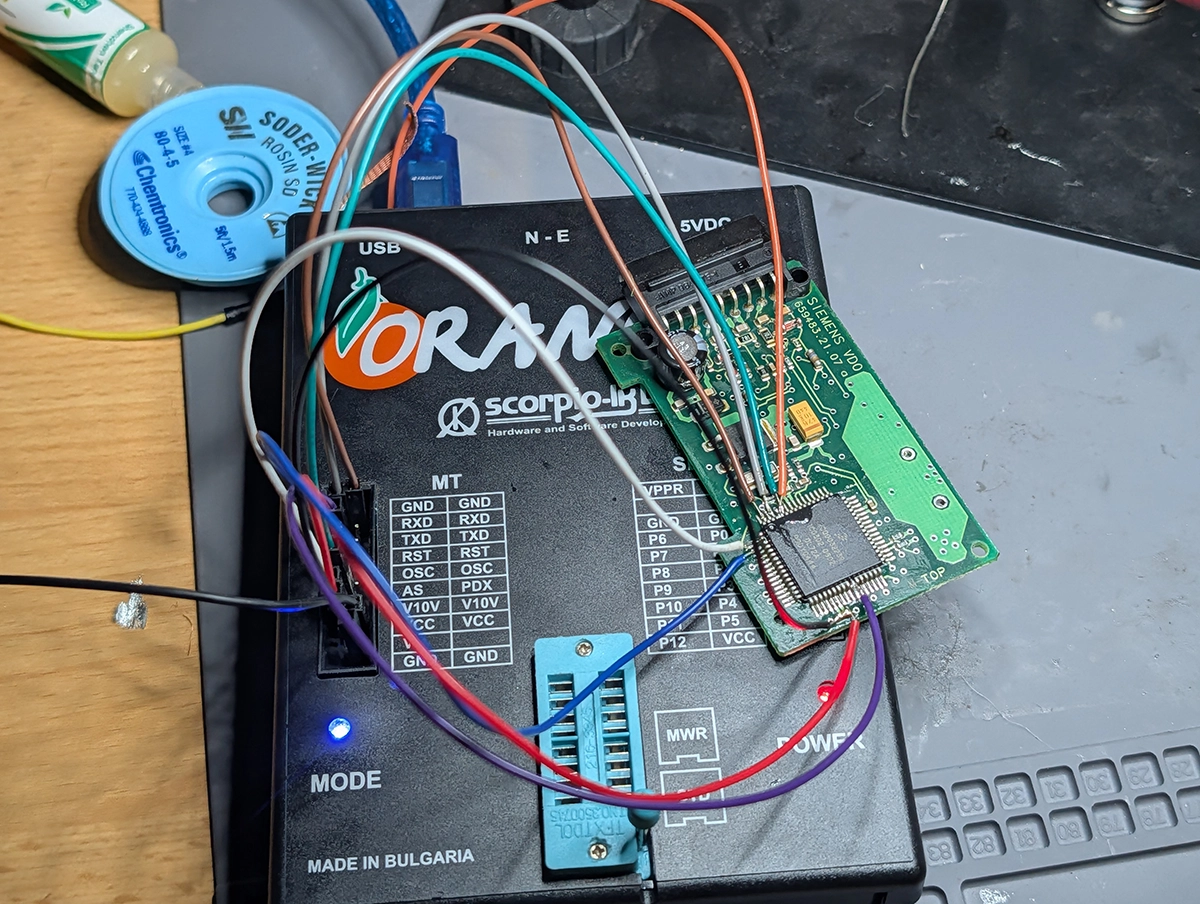

I tried reading the HC08 Motorolla chip inside immobox from old Opel. Came with good diragram which you can even rotate in orange PC program to match how your PCB is positioned to help you connect wires easier.

orange 5 clone 4
Orange5 clone
Orange5 clone
Chip programmer, not an airbag tool: strong on Renesas H8SX, NEC V850 and Fujitsu MCUs that CarProg cannot touch, so it complements a CarProg clone on the bench. Crash data is cleared by editing the dump.
Juraj

I'm Juraj Lukacko and I work as an auto electrician. On this site I share what I learn from real work on real cars, to help you pick the right tools for diagnostics, programming and tuning and get the job done.
