K-TAG clone review: a cheap bench programmer with one install catch Iamcarhacker

Published: August 14, 2026 · Last updated: August 17, 2026

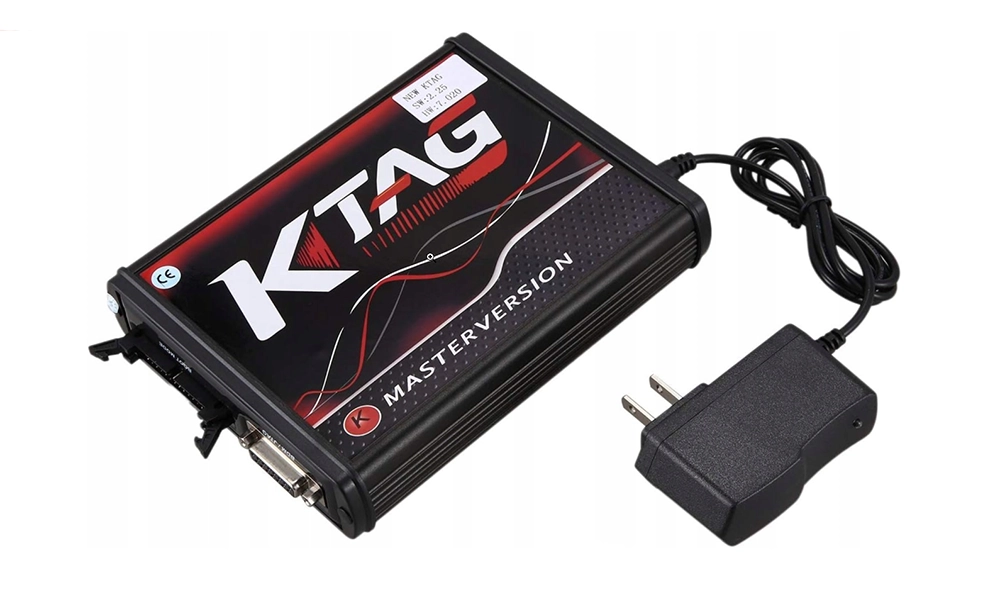

The K-TAG clone is a bench and BDM ECU programmer built for reading and writing ECU maps directly on the chip, the kind of tool you reach for once OBD-only flashing stops being enough. I run it alongside my KESS V2 clone, and coverage for the price has held up on almost everything I’ve thrown at it so far.

Personally tested by Juraj – what he likes

Good coverage for the price
Straightforward to use

Things to consider

Clone tool so reliability can vary
Need the correct version
Don't blindly trust the checksum since it's a clone

✗ Global OBD✗ Full system codes✗ Full system live data✗ Bidirectional✗ Coding✓ ECU programming

Scores

Programming

9/10

Vehicle coverage

8/10

Ease of use

2/10

UX quality

4/10

Speed

4/10

Price / value

9/10

Build quality

7/10

✅These scores come from testing on real cars, solving real problems. How I test OBD2 scanners →

Specs

Tool type	Standalone device
User level	Professional
Vehicle focus	All makes
System focus	engine
Free updates	Not included
Subscription	Not required

Addons & accessories

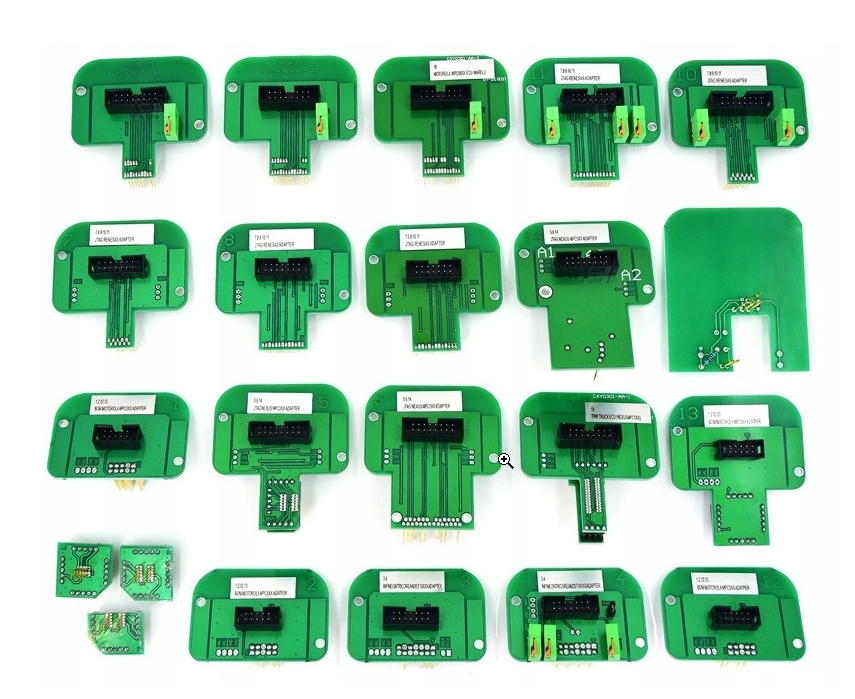

BDM adapters set

Check price ›

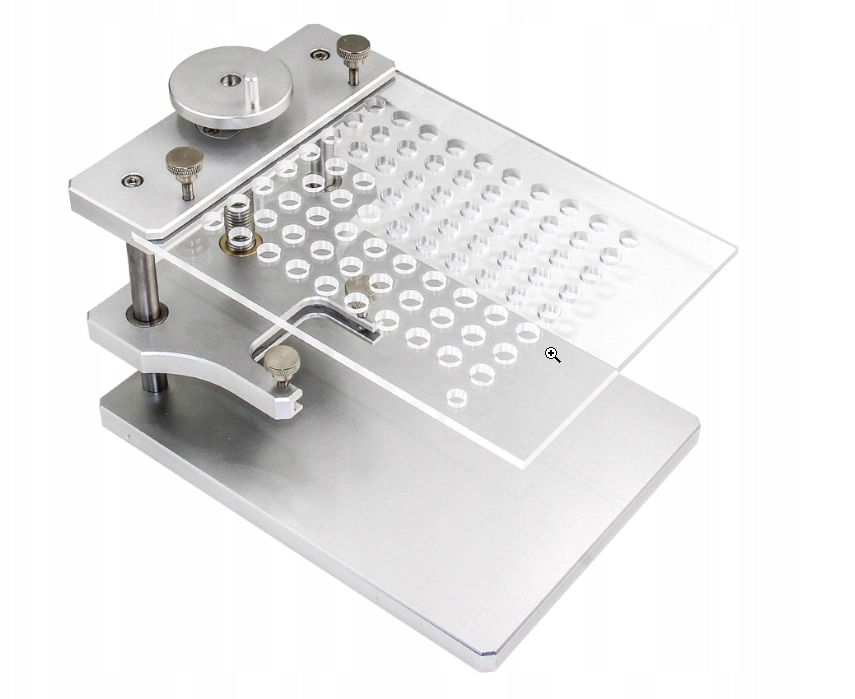

BDM Led frame

Check price ›

K-TAG clone7.3/10Check Price →

https://youtu.be/VGtcpF370oI

What it’s actually good at

The coverage on paper is strong for the price. It’s a BDM/bench programmer aimed at chip tuning and ECU work that OBD-only tools simply can’t reach, reading and writing maps straight off the chip instead of through the diagnostic port.

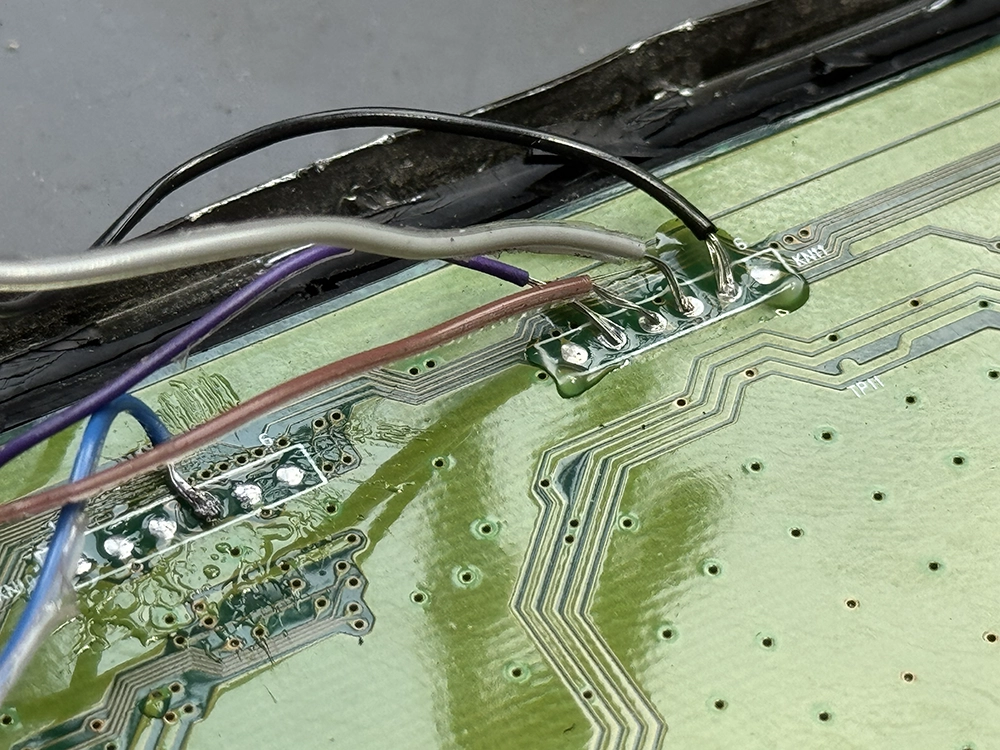

I put that to the test on a Nissan ECU last week. This one needed JTAG instead of BDM, so I wired the JTAG pins straight onto the board.

🔧 Nissan ECU, JTAG instead of BDM. Read went through clean on the first try, no dropped connection, no retries. I followed the K-TAG’s own pinout instructions for the JTAG method and everything matched exactly. Not every ECU on this tool is a BDM clamp job, and it’s good to know JTAG is a real option when the board asks for it.

Where it falls short

The K-TAG clone only talks to a chip on the bench. If you want coverage through the OBD socket as well, on cars where you don’t want to open the ECU at all, you need KESS as well.

⚠️ The newer Ksuite build didn’t worked for me. I couldn’t get the K-TAG clone to connect with a recent Ksuite install. Rolling back to Ksuite 2.25 fixed it right away.

Final word

The K-TAG clone earns its place on the bench once OBD flashing hits a wall. The Nissan JTAG read went exactly the way the instructions said it would, and that’s the best compliment I can give a bench tool. Just roll back to Ksuite 2.25 if a newer build won’t connect.

K-TAG clone

Bench/BDM ECU programmer for reading and writing ECU maps with wider coverage than OBD-only tools, used in chip tuning

Check on Amazon ›AliExpress ›
